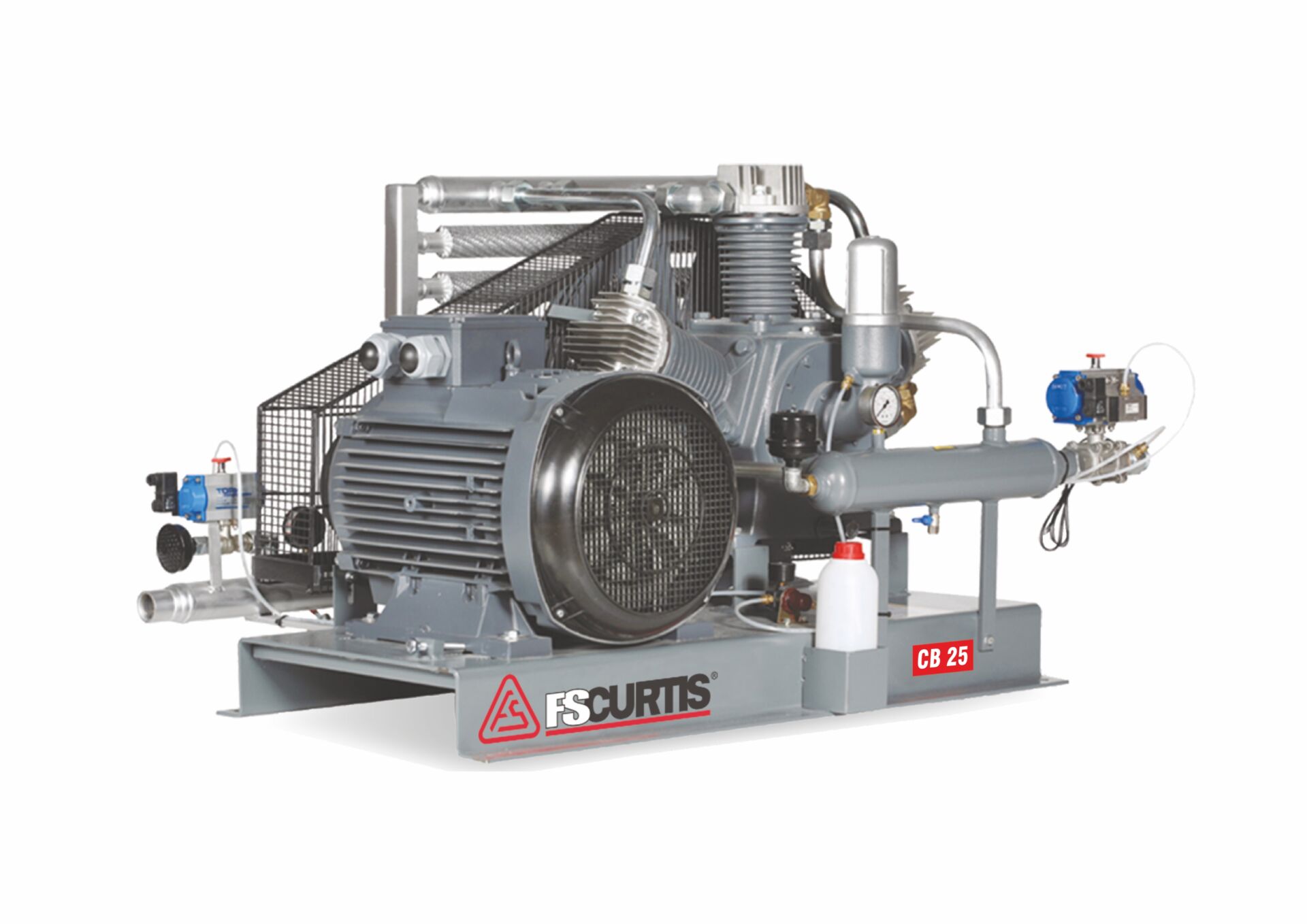

40 Bar, Oil-Lubricated, Booster Compressor Compressed air is an energy source that is as important as electricity and hydraulics. Especially for the production of pet bottles, which are being used more and more in daily life, by people all over the world. Besides, the applications such as leak tests of hydraulic and pneumatic devices, specific drive cylinders, presses, and fixture apparatus also need high-pressure air. Unlike other applications requiring only low-pressure air, both low and high-pressure levels of air up to 40 bars ought to be used in the facilities for these applications. Therefore, instead of designing the whole system considering the high-pressure need, increasing the air pressure just at the certain points where high pressure is needed, is the most energy and cost-efficient solution. As a manufacturer having reciprocating booster compressors in its product portfolio which boost the 7-13 bar compressed air taken from rotary screw compressors, up to 40 bars, FS-Curtis provides the most appropriate solutions with its years of experience and quality policy to pet manufacturers and the enterprises which have to use high-pressure air. These compressors can also be modified to serve as boosters for nitrogen.

Heatless Air Dryers SERIES: ADZORB & ADZORB PLUS Capacity : 40 cfm to 10,000 cfm Working Pressure : 4.5 to 70 bar(g) Need of Compressed Heatless Air Dryer Compressed air leaving the compressor contains considerable quantities of water vapour, oil particles. If the untreated air is supplied to distribution lines, then the moisture would condense to liquid water as it gets cooled. The condensed water is a major cause of downtime in compressed air systems as it causes rust, pitting, blockages and freeze ups, which result in component failure and product rejection. The only way to prevent condensation of water in air lines is to lower the dew point of the air in the system. It is less expensive to own and operate an air dryer than to live with the problems. Adzorb Heatless Air dryer Operation Coalescing filters of 5 micron and 0.01 micron remove bulk moisture and liquid oil from the compressed air. This pre-treated air diffuses to the bottom of the adsorber (T1) and passes through the desiccant bed which adsorbs moisture and dries the air. Dry air leaves the adsorber (T1) and passes through 1 micron dust filter. Thus dry, filtered compressed air is available for precise operation. The desiccant can adsorb only certain quantity of moisture and will reach equilibrium after certain time. It can no longer dries the air to the required dew point and hence it should be regenerated to keep the process continuous. To regenerate the first adsorber (T1), partial quantity of dry air coming out of second adsorber (T2) is diverted to first adsorber (T1). This dry air expands to atmospheric pressure and becomes subsaturated. This subsaturated dry air purges out all moisture from the first adsorber (T1) and makes it ready for next adsorption process. All these operations are perfectly performed by valves and controller. We are dealing Elgi, Trident Dryer , GEM Dryer and Summits Hygronics dryer, Atlas Copco, IR, Kaeser,

Capacity : 0.5 – 12.0 m3 Working pressure : up to 40 bar (g) Design : As per ASME sec viii Divn I / IS : 2825 /CE / equivalent

Pneuzorb – The modular heatless air dryer is constructed using corrosion resistant Aluminium alloy for longer life span and clean operation; specifically developed for Point of use application. Moisture Indicator to ascertain outlet air quality Purge Economizer offers Potential savings Oil Check apparatus for air quality validation Inbuilt with DDS-Dew point Dependent switching. Capacity : 10cfm to 125cfm Working Pressure : 4 bar(g) to 12 bar(g) We are dealing Elgi, Trident Dryer , GEM Dryer and Summits Hygronics dryer, Atlas Copco, IR, Kaeser,

firstAir German Series of FS Curtis GmbH and offers a wide range of air cooled rotary screw compressors with a nominal motor power from 4 to 250 kW and operating pressure from 5 to 16 bar(g). For this purpose, a new range of airends with high performance has been developed, designed and produced which, together with our high-quality thermostatic valves, intake valves and separators, contribute to the reliability and long lifetime of the product. Thanks to our highly efficient airends in conjunction with IE3 electric motors, the screw compressors achieve a high technological standard and high efficiency. Thanks to the new high efficiency air-ends linked with the IE3 electrical motors which are just as powerful, a high technological standard and a high efficiency are achieved. High environmental and energy saving standards are also respected when developing new products

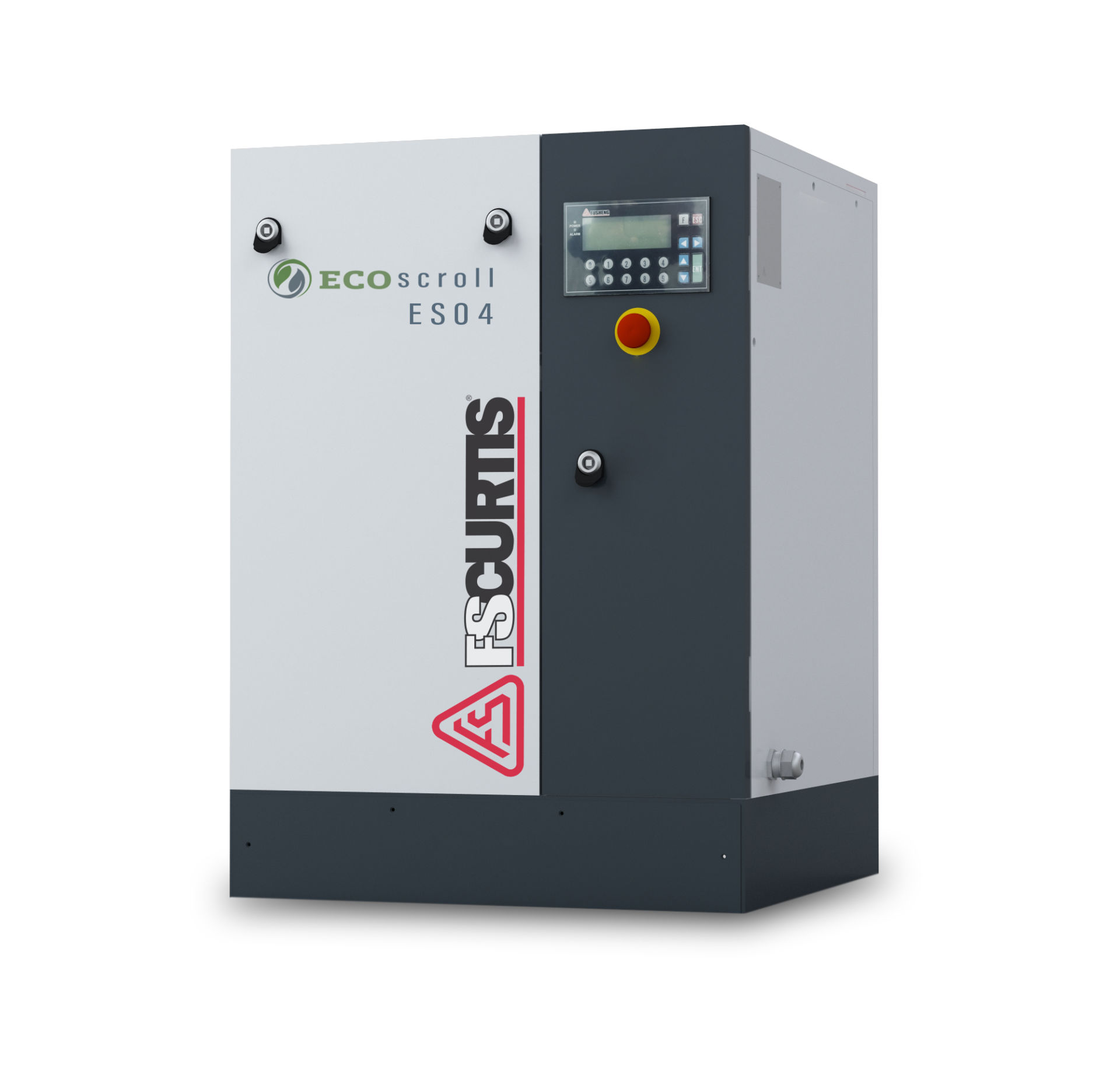

8 BAR, OIL-FREE AIR COMPRESSOR Environmentally friendly and highly reliable, the Eco Scroll comes with a user-friendly control interface with an easy-to-read display. FS-Curtis ECO-Scroll oil-free air compressors are ISO 8573-1 CLASS 0 certified compressors. That makes them energy efficient, easy to operate and maintain, quiet and compact. ECO-Scroll compressors provide 100% oil-free air for critical applications in industries including electronics, pharmaceutical, hospitals, printing, automotive, universities, dental applications, water aeration, food, and beverage

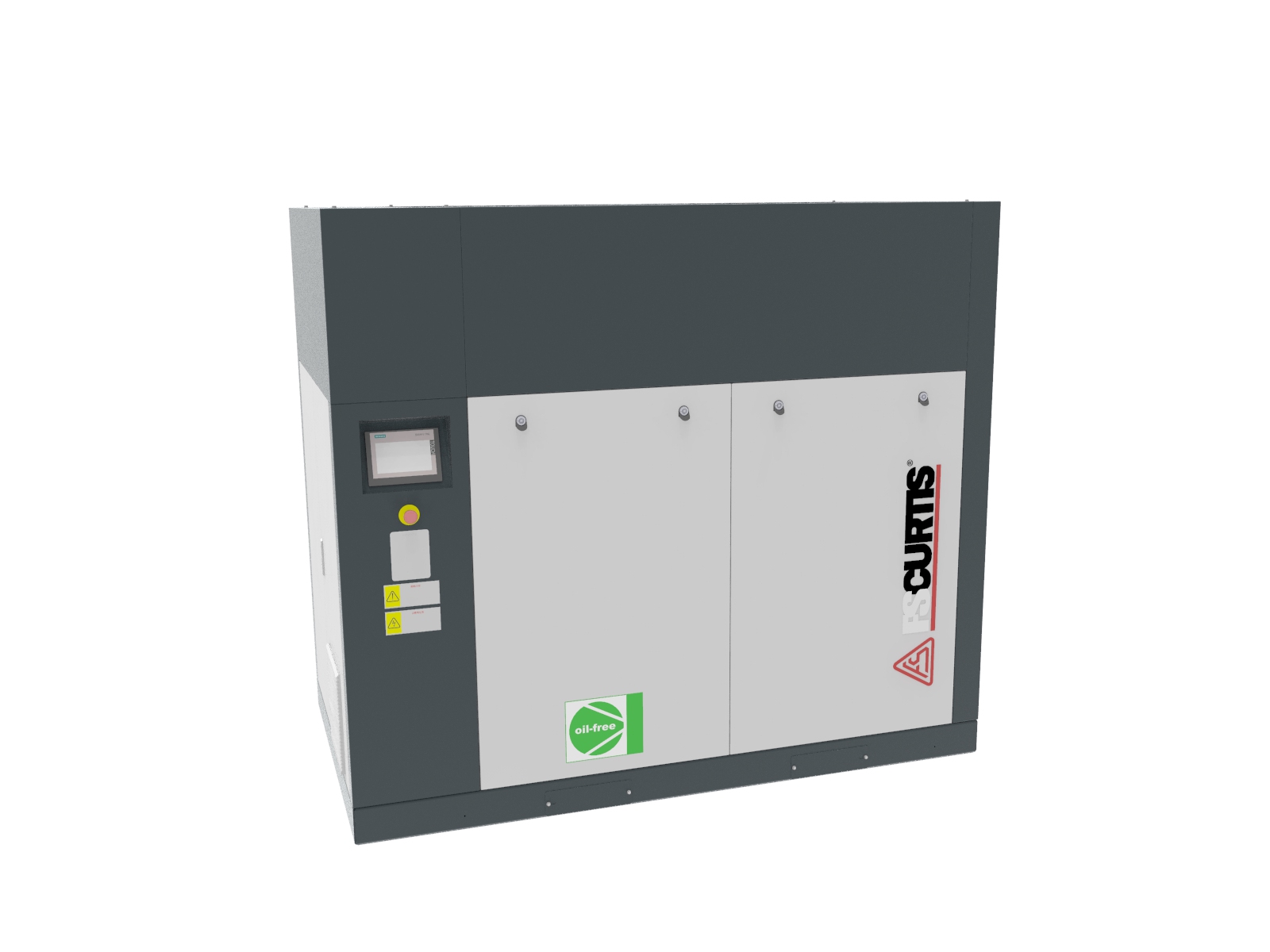

7-10 Bar, Oil free dry screw air compressor suitable for ISO8573-1 Class Zero requirement The EX oil-free screw compressor series works on a dry compression principle and no lubricating oils are required throughout the entire compression process. The series is ISO8573.1 Class 0 certified and supplies 100% oil-free compressed air. It is designed with a sophisticated processing rotor, gear drive, and a reliable seal combination to provide high-quality compressed air. It has a long lifespan and a wide scope of applications. The unit is CAD integrated, designed, and made; it employs advanced patented VDT dew point control to monitor the temperature and humidity of the compressed air and to enhance compression efficiency.

7-9Bar, Oil Free Screw Air Compressor Oil free, water-cooled/air-cooled screw compressor suitable for CLASS ZERO compressed air.

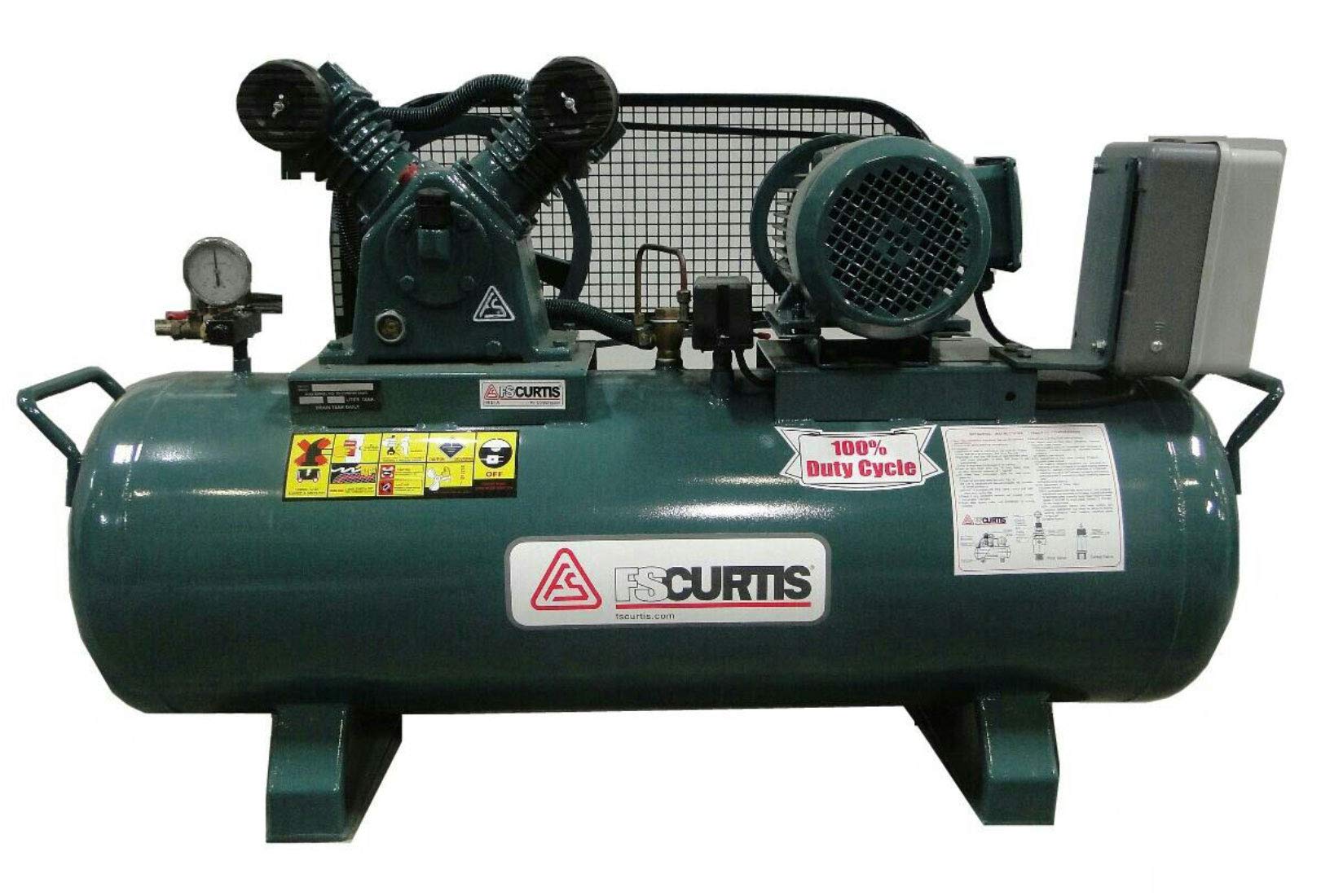

Reciprocating Air Compressors are the economical compressor system option ideally suited for intermittent duty cycles. Our durable designs are adaptable for many applications and range from inexpensive 1HP to more rugged industrial models up through 20HP for low pressure application. Our high pressure booster compressors are available up to 40HP.
